| POWER: | 9HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | ||
| Highlight: | 190ND Water Cooled Diesel Engine,10.5HP Water Cooled Diesel Engine,7.7KW Water Cooled Diesel Engine |
||
Machine Diesel Engine , Agriculture Machine , Water Cooling Engine , Farm machinery spare parts , 1 pillow block bearing

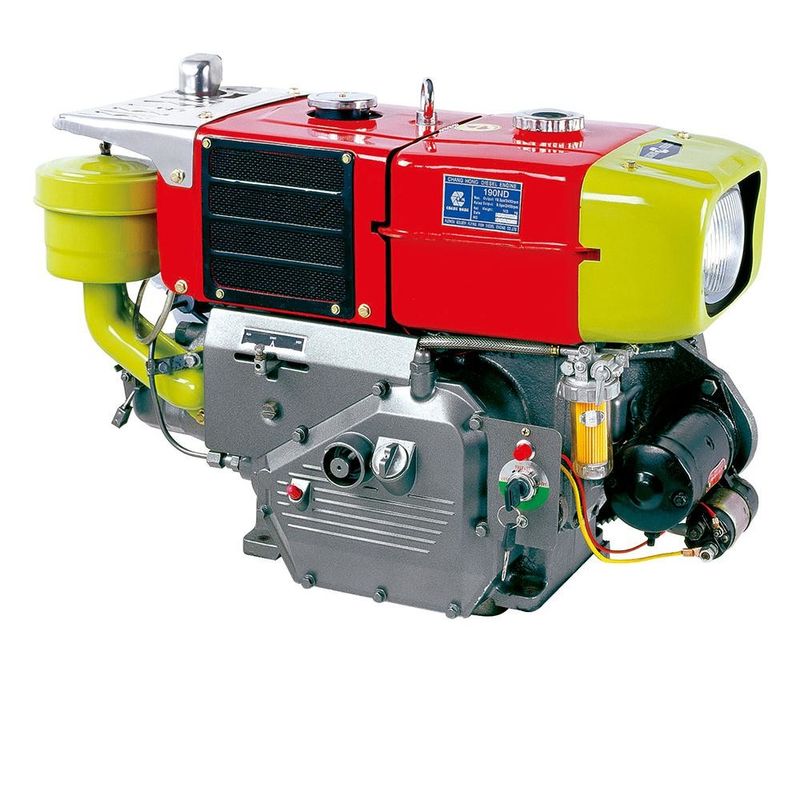

190ND IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | 190ND |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 90x90 |
| SPEED (RPM) | 2400 |
| CONTINUOUS OUTPUT (KW/HP) | 7/9.5 |
| MAXIMUM OUTPUT (KW/HP) | 7.7/10.5 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 274.7 |
| STARTING METHOD | ELECTRIC STARTER |
| LUBRICATING OIL CAPACITY (L) | 3 |
| WATER TANK CAPACITY (L) | 2 |
| FUEL TANK CAPACITY (L) | 9 |
| NET WEIGHT (KGS) | 108 |
| GROSS WEIGHT (KGS) | 126 |
| OVERALL DIMENSIONS (LXWXH:MM) | 740x410x630 |
| SET/20" CONTAINER | 132 |
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
