Product Details:
Payment & Shipping Terms:
|
| POWER: | 9.8HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | STARTING METHOD: | HAND STARTER |
| DISPLACEMENT: | 276 G/KW.H | PLACE OF ORIGIN: | P.R.CHINA |
| Highlight: | 9.8HP Water Cooled Diesel Engine,276 g/kwh Water Cooled Diesel Engine,2400RPM Water Cooled Diesel Engine |
||
Machine Diesel Engine , Agriculture Machine , Water Cooling Engine , Farm machinery spare parts , 1 pillow block bearing

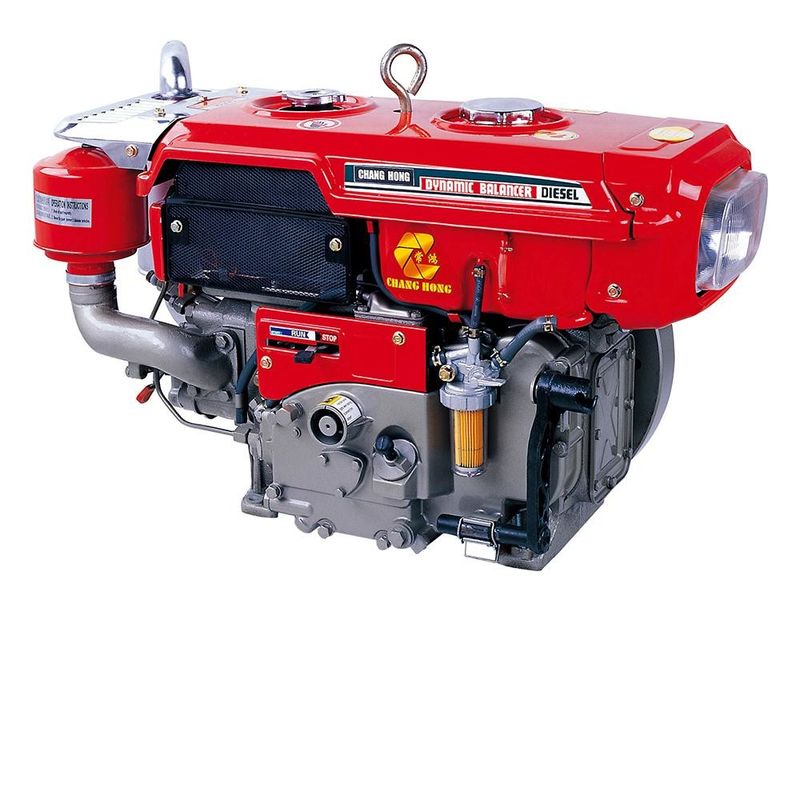

R192NL IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | R192NL |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 92x90 |
| SPEED (RPM) | 2400 |
| CONTINUOUS OUTPUT (KW/HP) | 7.2/9.8 |
| MAXIMUM OUTPUT (KW/HP) | 7.8/10.6 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 276 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 3 |
| WATER TANK CAPACITY (L) | 2 |
| FUEL TANK CAPACITY (L) | 9 |
| NET WEIGHT (KGS) | 110 |
| GROSS WEIGHT (KGS) | 128 |
| OVERALL DIMENSIONS (LXWXH:MM) | 740x410x630 |
| SET/20" CONTAINER | 132 |
