Water Cooling R178 6.12HP 4.5KW Single Cylinder Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 5HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | H.S CODE: | 8408909111 |
| High Light: | R178 Single Cylinder Diesel Engine,4.5KW Single Cylinder Diesel Engine,6.12HP Single Cylinder Diesel Engine |
||
Diesel Engine , Agricultural Machinery , Single Cylinder Engine , Small Diesel Engine

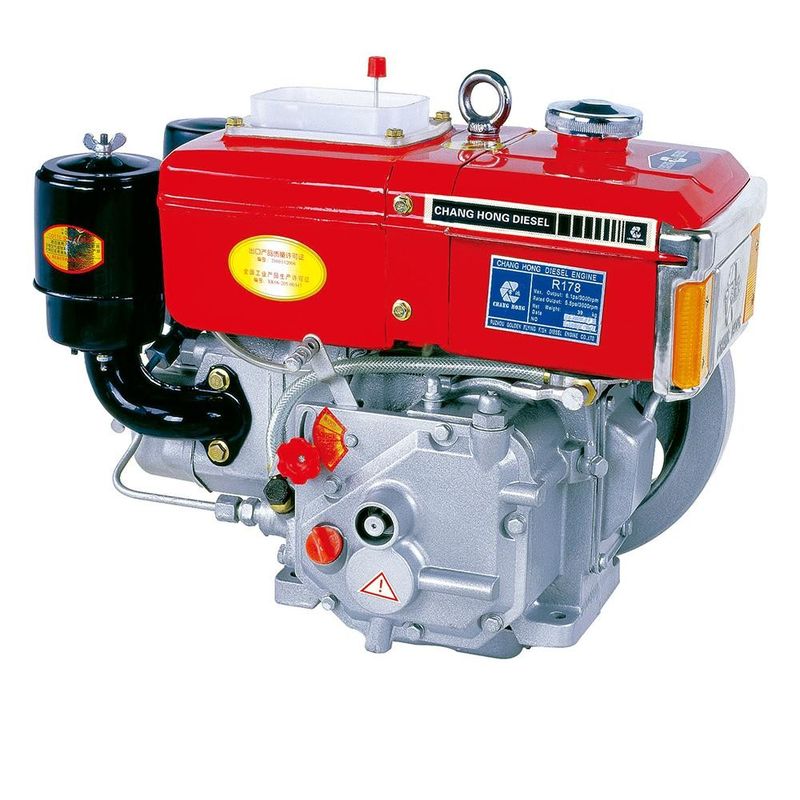

R178 IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE, 4-STROKE, HORIZONTAL TYPE. ITS DETAILED SPECIFICATION DATA AS BELOWS:
| MODEL | R178 |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 78x65 |
| SPEED (RPM) | 3000 |
| CONTINUOUS OUTPUT (KW/HP) | 3.68/5 |
| MAXIMUM OUTPUT (KW/HP) | 4.5/6.12 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 292.4 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 1.8 |
| WATER TANK CAPACITY (L) | 4 |
| FUEL TANK CAPACITY (L) | 3.5 |
| NET WEIGHT (KGS) | 39 |
| GROSS WEIGHT (KGS) | 48 |
| OVERALL DIMENSIONS (LXWXH:MM) | 530x320x465 |
| SET/20" CONTAINER | 385 |
Use for:
IT IS BROADLY APPLY FOR AGRICULTURAL MACHINERIES, SUCH AS RICE-MILLING MACHINE, WATER PUMP, GENERATOR SETS, CONSTRUCTION MACHINERIES ETC.
